> >>TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 19MM 1x DPDT OUTPUT PLASTIC RECESSED MOUNT 25MM HOLE CUTOUT
New TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 19MM 1x DPDT OUTPUT PLASTIC RECESSED MOUNT 25MM HOLE CUTOUT View larger

TANE

TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 19MM 1x DPDT OUTPUT PLASTIC RECESSED MOUNT 25MM HOLE CUTOUT

TANSD-84C-WH

TANSD-84C-WH

New product

SD-84C-WH Recessed DPDT Magnetic Contact for Steel Doors (White)

The SD-84C-WH is a recessed magnetic contact designed for high-security installations where discrete, dual-circuit monitoring is required. Featuring a Double Pole Double Throw (DPDT) reed switch, it allows for simultaneous supervision of two independent alarm loops. The contact is optimised for flush mounting into steel door frames and includes a rare earth magnet to ensure consistent activation even in challenging environments where steel interference can affect standard magnetic contacts.

This model features a white cylindrical housing that integrates cleanly into light-coloured door surfaces. Rated for 30V AC/DC at 0.2A per circuit, it supports a standard operating gap of 28 mm and includes 305 mm (12 inch) 22 AWG leads for straightforward wiring. With dimensions of 25 mm in diameter and 21.3 mm in depth, the SD-84C-WH is an ideal choice for institutional, industrial, or commercial applications requiring dependable recessed detection with dual-circuit capability.

Key Features

  • DPDT reed switch for monitoring two independent alarm circuits
  • Includes rare earth magnet for reliable steel door activation
  • Recessed cylindrical housing in white for flush and discreet installation
  • Rated for 30V AC/DC at 0.2A per circuit

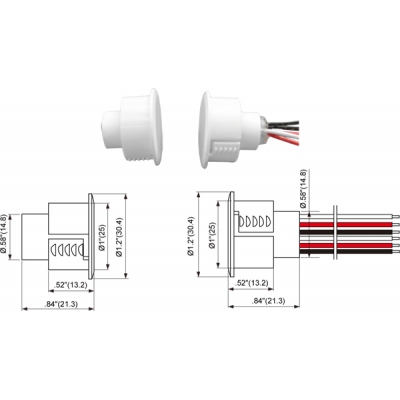

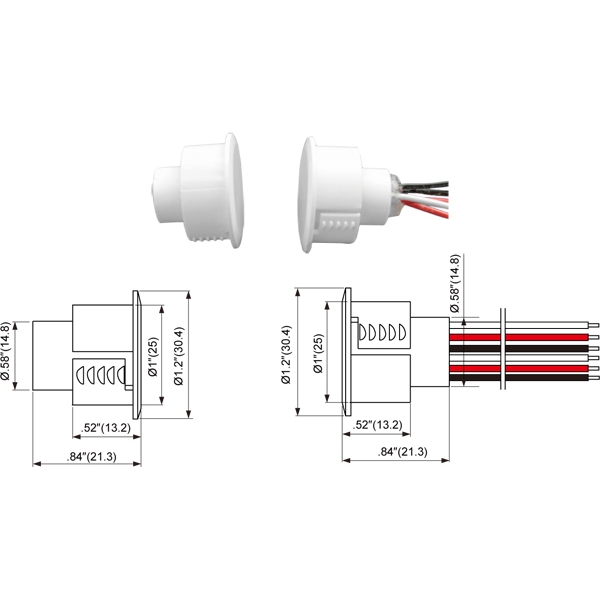

  • Dimensions: 25 mm (DIA) x 21.3 mm (L), 305 mm (12 inch) 22 AWG leads
  • Standard 28 mm magnet gap, operating temperature -40°C to +60°C
  • COLOR WHITE
  • PRODUCT TYPE REED SWITCH
