> >>TANE HARDWIRED REED SWITCH BROWN DETECTION GAP 28MM 1x N/C OUTPUT (DRY) PLASTIC RECESSED MOUNT 19.05MM HOLE CU
New TANE HARDWIRED REED SWITCH BROWN DETECTION GAP 28MM 1x N/C OUTPUT (DRY) PLASTIC RECESSED MOUNT 19.05MM HOLE CU View larger

TANE

TANE HARDWIRED REED SWITCH BROWN DETECTION GAP 28MM 1x N/C OUTPUT (DRY) PLASTIC RECESSED MOUNT 19.05MM HOLE CU

TANSD-70-BR

TANSD-70-BR

New product

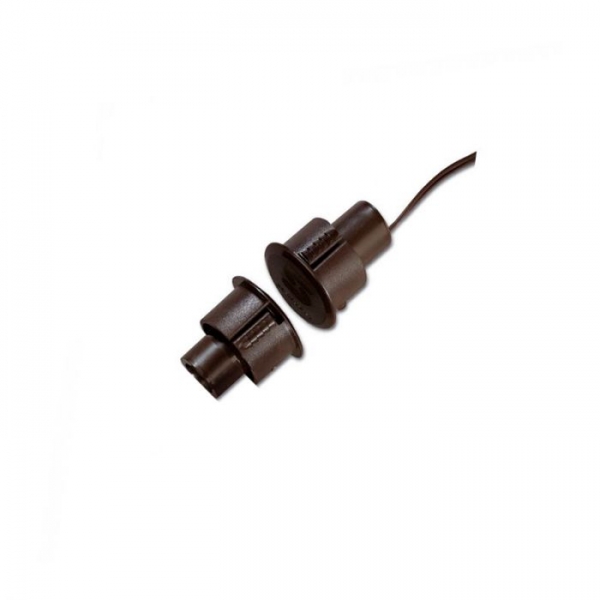

SD-70-BR Recessed Magnetic Contact for Steel Doors (Brown)

The SD-70-BR is a heavy-duty recessed magnetic contact designed specifically for steel door applications. With its rugged build and precise alignment, it provides secure and tamper-resistant protection for commercial and industrial entry points. This model includes an SPDT reed switch, allowing for Normally Open, Normally Closed, and Common connections, offering maximum flexibility for integration into alarm systems. Its brown finish and cylindrical form factor make it ideal for discreet mounting in metallic frames.

Built to perform in challenging environments, the SD-70-BR operates across a wide temperature range from -40°C to +60°C and features a generous 28 mm standard gap. It is housed in a durable casing with a diameter of 19.05 mm and a depth of 21.3 mm, and includes 305 mm (12 inch) 22 AWG leads. Its recessed design ensures a flush fit in steel doors and frames, providing dependable performance in high-security locations.

Key Features

  • SPDT configuration with NO, NC, and COM terminals for flexible wiring
  • Recessed cylindrical design for steel door installations
  • Standard operating gap: 28 mm for reliable alignment
  • Rugged brown housing with compact dimensions: 19.05 mm x 21.3 mm
  • 305 mm (12 inch) 22 AWG leads included for quick installation
  • Wide operating temperature range: -40°C to +60°C
  • COLOR WHITE
  • PRODUCT TYPE REED SWITCH
