> >>TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 50MM 1x N/C OUTPUT (DRY) PLASTIC SURFACE MOUNT
New TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 50MM 1x N/C OUTPUT (DRY) PLASTIC SURFACE MOUNT View larger

TANE

TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 50MM 1x N/C OUTPUT (DRY) PLASTIC SURFACE MOUNT

TANSM-20WG-WH

TANSM-20WG-WH

New product

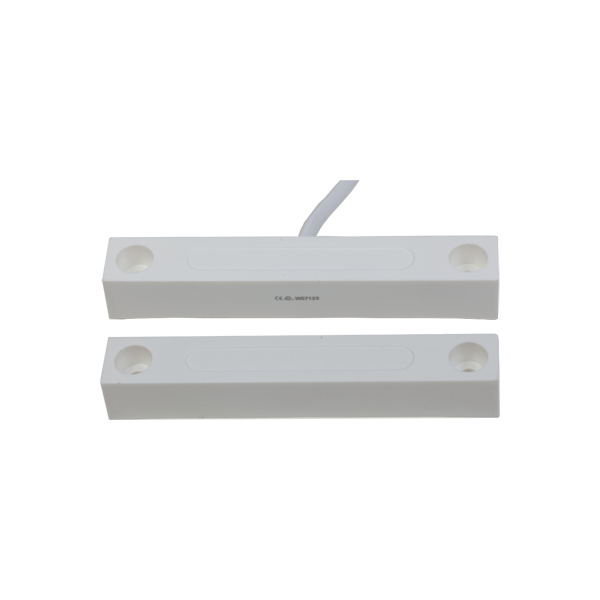

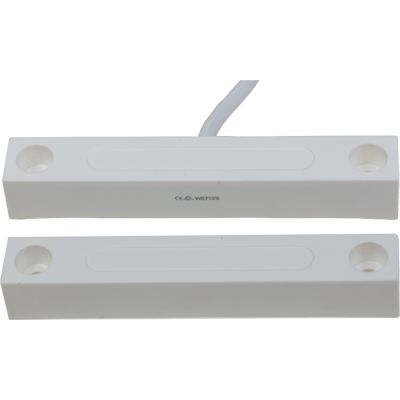

SM-20WG-WH Water-Resistant Surface Mount Magnetic Contact (White)

The SM-20WG-WH is a water-resistant surface mount magnetic contact engineered for reliable perimeter protection in harsh environments. Featuring a Single Pole Double Throw (SPDT) reed switch, this model supports Normally Open, Normally Closed, and Common terminals, making it suitable for a wide variety of alarm system configurations. Its robust white housing and weather-sealed design provide durable protection against dust and moisture, making it ideal for outdoor or exposed indoor applications.

Equipped with a standard magnet and armored cable for added resilience, the SM-20WG-WH installs easily on door or window frames where a tamper-resistant surface mount solution is required. The contact includes 305 mm (12 inch) 22 AWG leads and supports switching voltages up to 30V AC/DC at 0.2A. Whether used for residential gates or commercial entry points, this contact ensures dependable intrusion detection in demanding environments.

Key Features

  • SPDT reed switch with NO, NC, and COM outputs for flexible integration
  • Water-resistant housing ideal for outdoor or high-moisture locations
  • Surface mount design for secure door and window installations
  • Includes standard magnet and 305 mm (12 inch) 22 AWG armored cable
  • Rated for 30V AC/DC at 0.2A switching capacity
  • COLOR WHITE
  • PRODUCT TYPE REED SWITCH
