> >>TANE SM-35CWG-WH SURFACE REED SWITCH SPDT GAP 23MM SCREW TERMINALS WHITE
TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 23MM 1x SPDT OUTPUT PLASTIC SURFACE MOUNT View larger

TANE

TANE SM-35CWG-WH SURFACE REED SWITCH SPDT GAP 23MM SCREW TERMINALS WHITE

TANSM-35CWG-WH

TANSM-35CWG-WH

New product

TANE SM-35CWG-WH SURFACE REED SWITCH SPDT GAP 23MM SCREW TERMINALS WHITE

More details

SM-35CWG-WH Surface Mount Magnetic Contact with SPDT Switch (White)

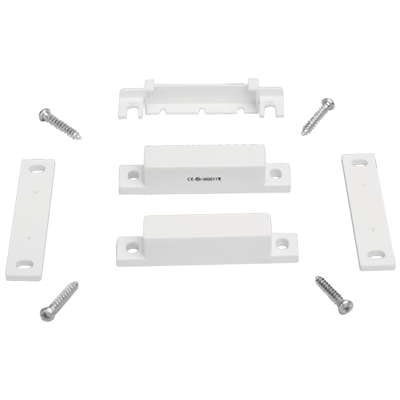

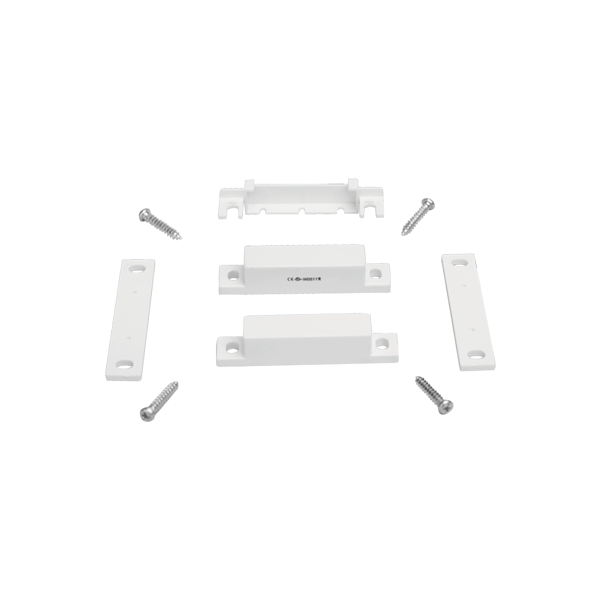

The SM-35CWG-WH is a surface mount magnetic contact designed for professional intrusion detection systems requiring a secure and versatile switching configuration. Featuring a Single Pole Double Throw (SPDT) reed switch, this contact supports Normally Open, Normally Closed, and Common outputs, making it ideal for integration into a wide range of alarm systems. It includes white ABS housing, screw terminals for quick connection, and optional spacers and covers to simplify installation on various surfaces.

This model offers a standard operating gap of 19 mm and is rated for up to 30V AC/DC at 0.2A, providing consistent performance in both residential and commercial environments. Its compact dimensions—63 mm (L) x 12.2 mm (W) x 13 mm (H)—and operating temperature range of -40°C to +60°C ensure it is suited for harsh conditions while delivering reliable perimeter protection. The SM-35CWG-WH is an excellent choice for installers seeking dependable surface mount detection with flexible wiring options.

Key Features

  • SPDT reed switch with NO, NC, and COM terminals for multiple wiring options
  • White surface mount housing with screw terminals and quick-connect setup
  • Standard 19 mm magnet gap for reliable activation
  • Rated for 30V AC/DC at 0.2A switching capacity
  • Compact dimensions: 63 mm (L) x 12.2 mm (W) x 13 mm (H)
  • Operating temperature: -40°C to +60°C
  • COLOR WHITE
  • PRODUCT TYPE REED SWITCH
