> >>TANE HARDWIRED ROLLER DOOR REED SWITCH SILVER DETECTION GAP 64MM 1x N/C OUTPUT (DRY) METAL SURFACE MOUNT
TANE HARDWIRED ROLLER DOOR REED SWITCH SILVER DETECTION GAP 64MM 1x N/C OUTPUT (DRY) METAL SURFACE MOUNT View larger

TANE

TANE HARDWIRED ROLLER DOOR REED SWITCH SILVER DETECTION GAP 64MM 1x N/C OUTPUT (DRY) METAL SURFACE MOUNT

TANTANE-86-MINI-18

TANTANE-86-MINI-18

New product

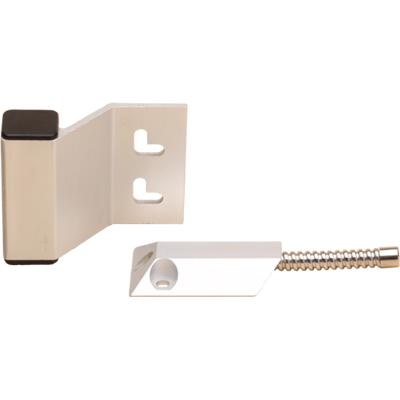

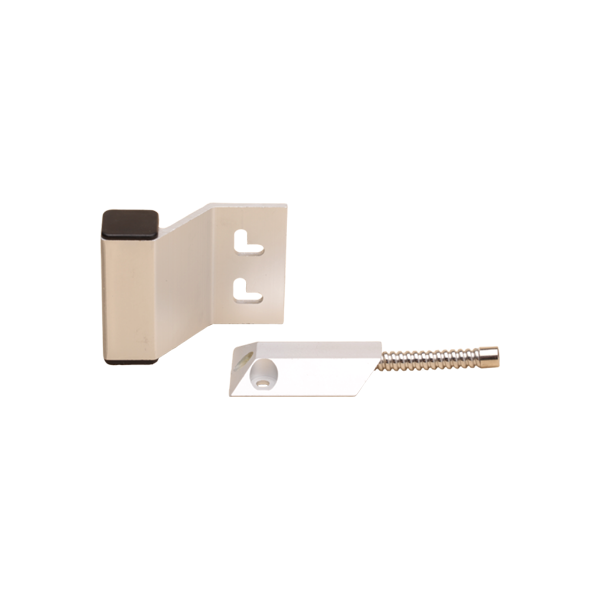

TANE-86-MINI-18 Surface Mount Mini Overhead Door Contact with Armored Cable

The TANE-86-MINI-18 is a heavy-duty surface mount magnetic contact engineered for commercial overhead doors and high-security perimeter applications. Housed in a durable aluminium case, it features a Single Pole Double Throw (SPDT) reed switch that provides Normally Open, Normally Closed, and Common outputs for flexible alarm system integration. This model includes 18 inch (458 mm) stainless steel armored leads for tamper-resistant wiring and operates effectively over large gaps, making it ideal for rolling and overhead industrial doors.

With a substantial standard magnet gap of 64 mm and operating voltage up to 30V AC/DC at 0.2A, the TANE-86-MINI-18 is designed for demanding conditions. The contact measures 54 mm x 34.7 mm x 9.5 mm, while the included magnet is larger for strong activation across wide installations. Built to withstand harsh environments, it supports operation in temperatures from -40°C to +60°C, ensuring dependable performance in both indoor and outdoor deployments:contentReference[oaicite:0]{index=0}.

Key Features

  • SPDT reed switch with NO, NC, and COM terminals for flexible integration
  • Designed for commercial overhead doors with 64 mm standard magnet gap
  • Includes 18 inch (458 mm) armored cable for tamper resistance
  • Durable aluminium housing for industrial-grade reliability
  • Rated for 30V AC/DC at 0.2A, operating temperature -40°C to +60°C
  • Contact dimensions: 54 mm x 34.7 mm x 9.5 mm
  • PRODUCT TYPE REED SWITCH
