> >>TANE SQZMAG-1840 RECESSED SPARE MAGNET FOR STEEL DOORS WHITE

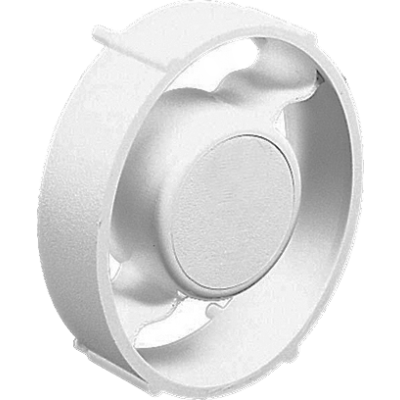

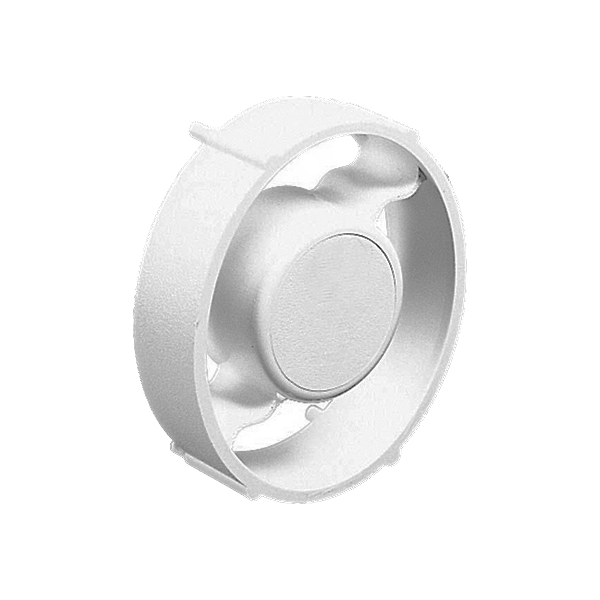

TANE SPARE REED MAGNET WHITE PLASTIC DOOR MOUNTED View larger

TANE

TANE SQZMAG-1840 RECESSED SPARE MAGNET FOR STEEL DOORS WHITE

TANSQZMAG-1840

TANSQZMAG-1840

New product

TANE SQZMAG-1840 RECESSED SPARE MAGNET FOR STEEL DOORS WHITE

More details

TANE SQZMAG-1840 Squeeze-Fit Recessed Magnet for Steel Doors

The TANE SQZMAG-1840 is a specialized recessed magnet designed for secure installations in the upper channel of metal entry and exit doors. Measuring 1.811″ x 1.622″ x 0.5″ (46 mm x 41.2 mm x 12.7 mm), this white magnet is engineered to be compressed slightly for a snug fit within the door’s recessed channel. This design ensures precise alignment with the corresponding magnetic contact switch, enhancing the reliability of intrusion detection systems.

For optimal performance, it is recommended to clean the channel thoroughly before installation. Applying a silicone adhesive can further secure the magnet, protecting it from moisture, dirt, and potential dislocation. The SQZMAG-1840 is ideal for commercial and industrial applications where a concealed, tamper-resistant magnetic solution is required.

Key Features

  • Designed for recessed installation in the top channel of metal doors
  • Compressible design ensures a secure, flush fit
  • Dimensions: 1.811″ x 1.622″ x 0.5″ (46 mm x 41.2 mm x 12.7 mm)
  • White finish for discreet appearance
  • Recommended use of silicone adhesive for enhanced moisture and dirt resistance
  • Ideal for commercial and industrial security applications
  • COLOR WHITE
  • PRODUCT TYPE REED SWITCH
