> >>TANE SD-74C-WH RECESSED STEEL DOOR REED SWITCH DPDT GAP 19MM 19.05MM HOLE WHITE
TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 19MM 1x DPDT OUTPUT PLASTIC RECESSED MOUNT 19.05MM HOLE CUTOUT View larger

TANE

TANE SD-74C-WH RECESSED STEEL DOOR REED SWITCH DPDT GAP 19MM 19.05MM HOLE WHITE

TANSD-74C-WH

TANSD-74C-WH

New product

TANE SD-74C-WH RECESSED STEEL DOOR REED SWITCH DPDT GAP 19MM 19.05MM HOLE WHITE

More details

SD-74C-WH Recessed DPDT Magnetic Contact for Steel Doors (White)

The SD-74C-WH is a high-security recessed magnetic contact featuring a Double Pole Double Throw (DPDT) reed switch, specifically designed for steel door installations. This advanced configuration enables monitoring of two separate circuits simultaneously, ideal for alarm systems requiring dual-loop security. Its white cylindrical design ensures a discreet and flush mount into steel door frames, providing tamper-resistant performance without compromising aesthetics.

Offering a standard magnet gap of 28 mm, the SD-74C-WH reliably activates switching functions and is rated for up to 30V AC/DC at 0.2A per circuit. It includes 305 mm (12 inch) 22 AWG leads and operates within a broad temperature range of -40°C to +60°C. With a compact size of 19.05 mm diameter and 21.3 mm depth, it is ideal for high-risk environments where concealed, dual-circuit intrusion detection is essential.

Key Features

  • DPDT reed switch enables control of two independent circuits
  • Discreet recessed mounting in steel doors with clean white finish
  • Standard magnet gap of 28 mm ensures consistent activation
  • Rated for 30V AC/DC at 0.2A per circuit

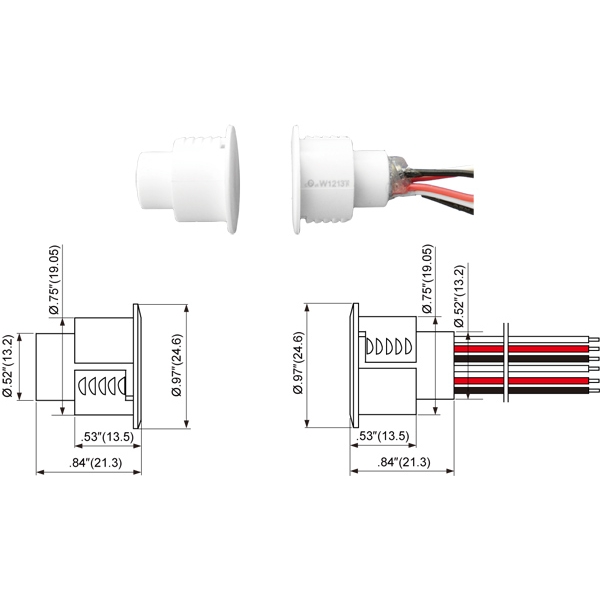

  • Compact size: 19.05 mm (DIA) x 21.3 mm (L), includes 305 mm (12 inch) 22 AWG leads
  • Operational temperature range from -40°C to +60°C
  • COLOR WHITE
  • PRODUCT TYPE REED SWITCH
