> >>TANE HARDWIRED REED SWITCH BROWN DETECTION GAP 18MM 1x N/C OUTPUT (DRY) PLASTIC SURFACE MOUNT
New TANE HARDWIRED REED SWITCH BROWN DETECTION GAP 18MM 1x N/C OUTPUT (DRY) PLASTIC SURFACE MOUNT View larger

TANE

TANE HARDWIRED REED SWITCH BROWN DETECTION GAP 18MM 1x N/C OUTPUT (DRY) PLASTIC SURFACE MOUNT

TANSS-40-BROWN

TANSS-40-BROWN

New product

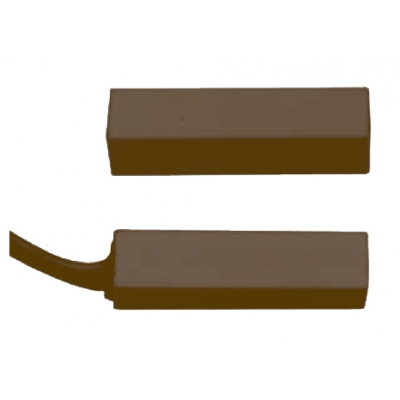

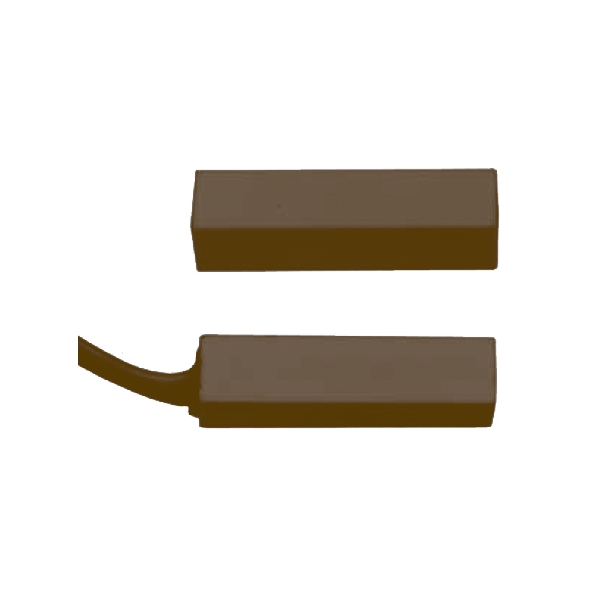

SS-40-BROWN Surface Mount Magnetic Contact with Adhesive (Brown)

The SS-40-BROWN is a compact surface mount magnetic contact designed for reliable perimeter intrusion detection. Housed in a brown low-profile ABS case, it features super stick adhesive backing for quick and secure installation on doors, windows, or frames. This model uses a Normally Closed reed switch configuration, triggering an alarm circuit when the magnetic field is interrupted beyond its standard 18 mm gap. It’s a practical choice for residential and commercial security systems requiring discreet, tamper-resistant monitoring.

Built for durability and convenience, the SS-40-BROWN operates in harsh environments from -40°C to +60°C and supports up to 100V AC/DC switching at 0.5A. Both the contact and matching magnet measure 33 mm x 8 mm x 8 mm, making it ideal for flush, symmetrical installation. With 305 mm (12 inch) 22 AWG leads and a secure adhesive mount, it offers an easy upgrade or addition to alarm systems without the need for screws or brackets.

Key Features

  • Normally Closed reed switch with 18 mm standard operating gap
  • Compact brown surface mount housing with high-bond adhesive backing
  • Rated for 100V AC/DC at up to 0.5A switching current
  • Contact and magnet dimensions: 33 mm (L) x 8 mm (W) x 8 mm (H)
  • Includes 305 mm (12 inch) 22 AWG wire leads
  • Operating temperature range: -40°C to +60°C
  • COLOR WHITE
  • PRODUCT TYPE REED SWITCH
