> >>TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 28MM 1x N/C OUTPUT (DRY) PLASTIC RECESSED MOUNT 25MM HOLE CUTOU
New TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 28MM 1x N/C OUTPUT (DRY) PLASTIC RECESSED MOUNT 25MM HOLE CUTOU View larger

TANE

TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 28MM 1x N/C OUTPUT (DRY) PLASTIC RECESSED MOUNT 25MM HOLE CUTOU

TANSD-80-WH

TANSD-80-WH

New product

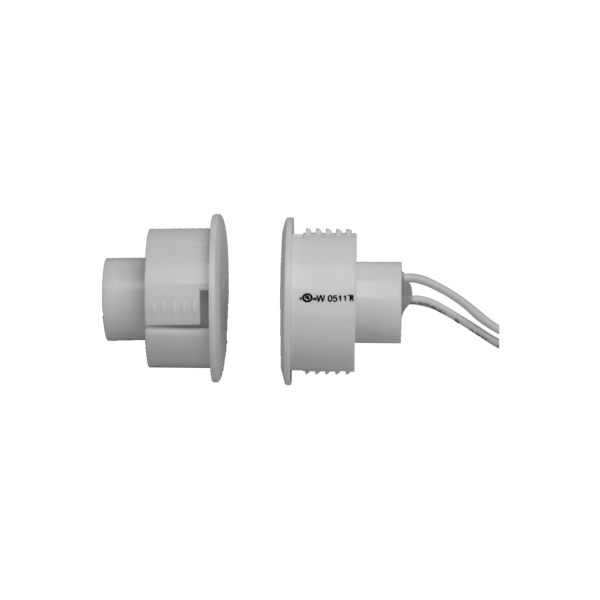

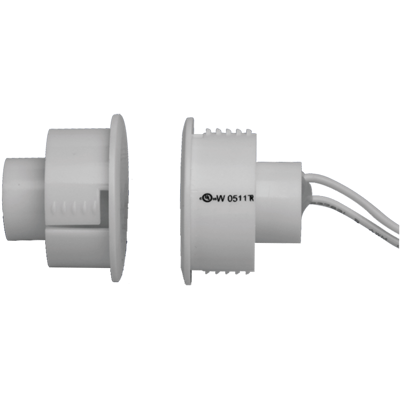

SD-80-WH Recessed Magnetic Contact for Steel Doors (White)

The SD-80-WH is a robust recessed magnetic contact specifically designed for steel door installations, offering a larger housing to accommodate wider mounting cavities. Featuring an SPDT reed switch, this model supports Normally Open, Normally Closed, and Common terminals for seamless integration into a wide range of alarm systems. Its white cylindrical design enables a flush, tamper-resistant installation, making it ideal for high-security commercial and industrial environments.

With a standard operating gap of 28 mm, the SD-80-WH ensures consistent performance and is rated for 110V AC or 100V DC at 0.5A. It includes 305 mm (12 inch) 22 AWG leads for quick wiring and operates in temperatures from -40°C to +60°C. The contact’s larger 25 mm diameter and 21.3 mm depth provide added stability and durability when embedded into heavy-duty steel doors, offering a reliable and secure solution for intrusion detection.

Key Features

  • SPDT reed switch with NO, NC, and COM terminals for versatile use
  • Designed for recessed installation in steel doors with larger cavities
  • Standard 28 mm magnet gap ensures dependable activation
  • Rated for 110V AC / 100V DC at up to 0.5A
  • Dimensions: 25 mm (DIA) x 21.3 mm (L), includes 305 mm (12 inch) 22 AWG leads
  • Operating temperature range: -40°C to +60°C
  • COLOR BROWN
  • PRODUCT TYPE REED SWITCH
