> >>TANE SD-82C-BR RECESSED STEEL DOOR REED SWITCH SPDT GAP 28MM 25MM HOLE BROWN

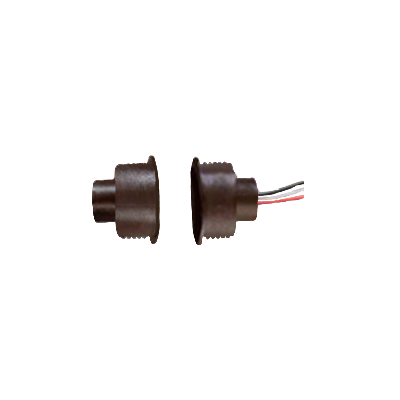

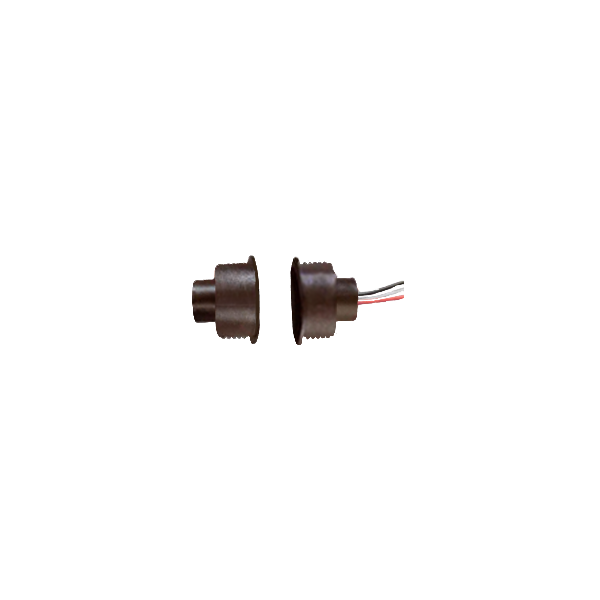

TANE HARDWIRED REED SWITCH BROWN DETECTION GAP 28MM 1x SPDT OUTPUT PLASTIC RECESSED MOUNT 25MM HOLE CUTOUT View larger

TANE

TANE SD-82C-BR RECESSED STEEL DOOR REED SWITCH SPDT GAP 28MM 25MM HOLE BROWN

TANSD-82C-BR

TANSD-82C-BR

New product

TANE SD-82C-BR RECESSED STEEL DOOR REED SWITCH SPDT GAP 28MM 25MM HOLE BROWN

More details

SD-82C-BR Recessed DPDT Magnetic Contact for Steel Doors (Brown)

The SD-82C-BR is a recessed magnetic contact specifically engineered for high-security applications in steel door environments. Featuring a Double Pole Double Throw (DPDT) reed switch, this contact allows for monitoring of two independent alarm circuits within a single device. Its brown cylindrical housing offers a discreet finish when installed into darker metal frames, making it ideal for commercial and industrial environments where tamper resistance and dual-circuit protection are essential.

The SD-82C-BR is rated for up to 30V AC/DC at 0.2A per circuit, with a standard magnet gap of 28 mm to ensure reliable activation. It operates over a wide temperature range from -40°C to +60°C and includes 305 mm (12 inch) 22 AWG leads for simplified wiring. With dimensions of 25 mm in diameter and 21.3 mm in depth, this recessed contact provides a secure and flush fit into steel door frames for enhanced intrusion detection performance.

Key Features

  • DPDT reed switch for dual-circuit alarm monitoring
  • Discreet brown housing designed for recessed installation in steel doors
  • Rated for 30V AC/DC at 0.2A per circuit
  • Standard magnet gap of 28 mm ensures consistent operation
  • Dimensions: 25 mm (DIA) x 21.3 mm (L), includes 305 mm (12 inch) 22 AWG leads
  • Operates in temperatures from -40°C to +60°C
  • COLOR BROWN
  • PRODUCT TYPE REED SWITCH
