> >>TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 12.5MM 1x N/C OUTPUT (DRY) PLASTIC RECESSED MOUNT 9.5MM HOLE CU
New TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 12.5MM 1x N/C OUTPUT (DRY) PLASTIC RECESSED MOUNT 9.5MM HOLE CU View larger

TANE

TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 12.5MM 1x N/C OUTPUT (DRY) PLASTIC RECESSED MOUNT 9.5MM HOLE CU

TANMINI-10-WH

TANMINI-10-WH

New product

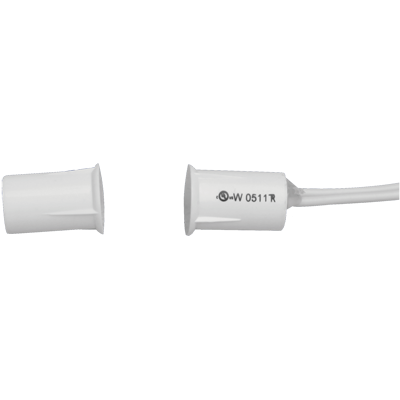

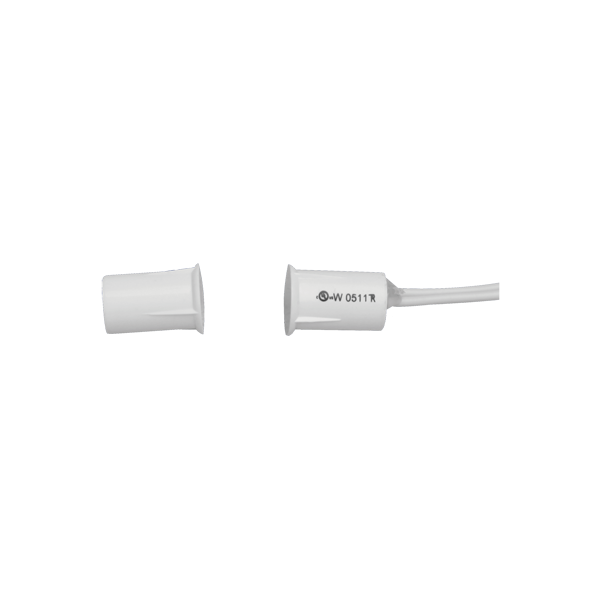

MINI-10-WH Miniature Recessed Magnetic Contact (White)

The MINI-10-WH is a compact recessed magnetic contact switch designed for discreet installation in doors and windows. With its small 9.5 mm diameter and clean white finish, this switch is ideal for residential and light commercial intrusion detection systems where aesthetics and space-saving design are essential. It features a normally open reed configuration that triggers an alarm circuit when the contact and magnet separate beyond the standard 12.5 mm gap.

Engineered for reliability, the MINI-10-WH includes 305 mm (12 inch) 22 AWG leads and operates in extreme temperatures ranging from -40°C to +60°C. Despite its small size, it supports switching voltages up to 24V AC/DC and a current of 0.1A, making it suitable for most security system requirements. The quick and simple recessed mounting allows it to blend seamlessly into wooden or aluminium frames for a tamper-resistant, low-profile finish.

Key Features

  • Miniature recessed contact for low-profile installations
  • Normally open reed switch with 12.5 mm standard operating gap
  • Supports up to 24V AC/DC and 0.1A switching capacity
  • Durable white plastic housing with 305 mm (12 inch) 22 AWG leads
  • Compact size: 9.5 mm diameter x 15.5 mm length
  • Wide operating temperature: -40°C to +60°C
  • COLOR WHITE
  • PRODUCT TYPE REED SWITCH
