> >>TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 8MM 1x N/C OUTPUT (DRY) PLASTIC RECESSED MOUNT 15MM HOLE CUTOUT

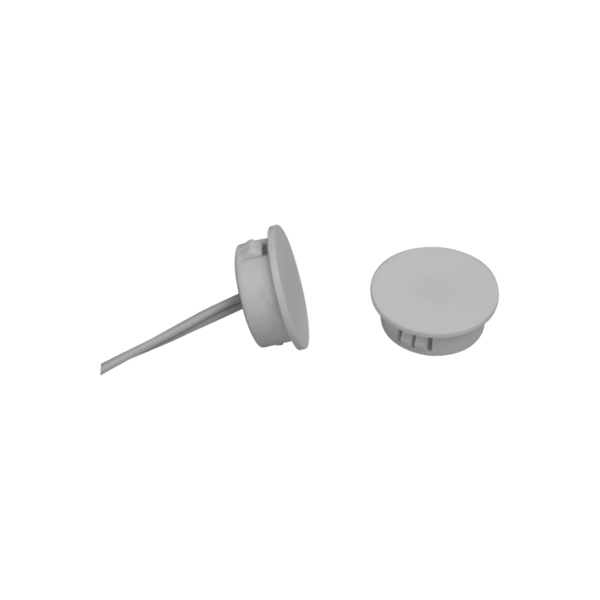

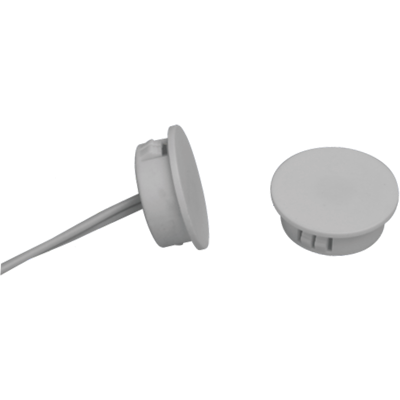

TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 8MM 1x N/C OUTPUT (DRY) PLASTIC RECESSED MOUNT 15MM HOLE CUTOUT View larger

TANE

TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 8MM 1x N/C OUTPUT (DRY) PLASTIC RECESSED MOUNT 15MM HOLE CUTOUT

TANMINI-DISC-WH

TANMINI-DISC-WH

New product

MINI-DISC-WH Miniature Recessed Magnetic Contact (White)

The MINI-DISC-WH is an ultra-compact recessed magnetic contact designed for subtle and effective intrusion detection in security systems. Its round, disc-style form factor allows for clean installation into narrow door and window frames, making it ideal for residential and light commercial applications. This contact features a normally open reed switch that closes when the magnet is within an 8 mm standard gap, providing reliable circuit control with minimal visual impact.

Built for durability, the MINI-DISC-WH includes 305 mm (12 inch) 22 AWG wire leads and operates across a wide temperature range from -40°C to +60°C. Despite its compact size of just 18 mm in diameter and 6.3 mm thick, it supports a switching voltage of up to 24V AC/DC and a current capacity of 0.1A. Its white finish and tiny footprint make it the perfect choice for installations demanding discreet performance without compromising reliability.

Key Features

  • Miniature disc-style recessed contact for ultra-low profile installations
  • Normally open reed switch with 8 mm standard magnet gap
  • Supports 24V AC/DC at 0.1A for alarm system compatibility
  • Compact size: 18 mm diameter x 6.3 mm thick
  • Includes 305 mm (12 inch) 22 AWG leads for easy wiring
  • Operates in harsh conditions from -40°C to +60°C
  • COLOR WHITE
  • PRODUCT TYPE REED SWITCH
