> >>TANE HARDWIRED ADJUSTABLE SCREW REED SWITCH WHITE DETECTION GAP 6MM 1x N/C OUTPUT (DRY) PLASTIC RECESSED MOUNT
TANE HARDWIRED ADJUSTABLE SCREW REED SWITCH WHITE DETECTION GAP 6MM 1x N/C OUTPUT (DRY) PLASTIC RECESSED MOUNT View larger

TANE

TANE HARDWIRED ADJUSTABLE SCREW REED SWITCH WHITE DETECTION GAP 6MM 1x N/C OUTPUT (DRY) PLASTIC RECESSED MOUNT

TANTANE-3/8ASH-WH

TANTANE-3/8ASH-WH

New product

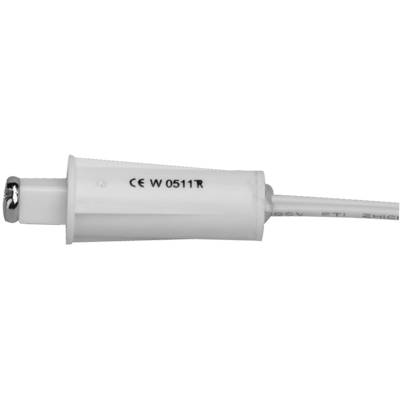

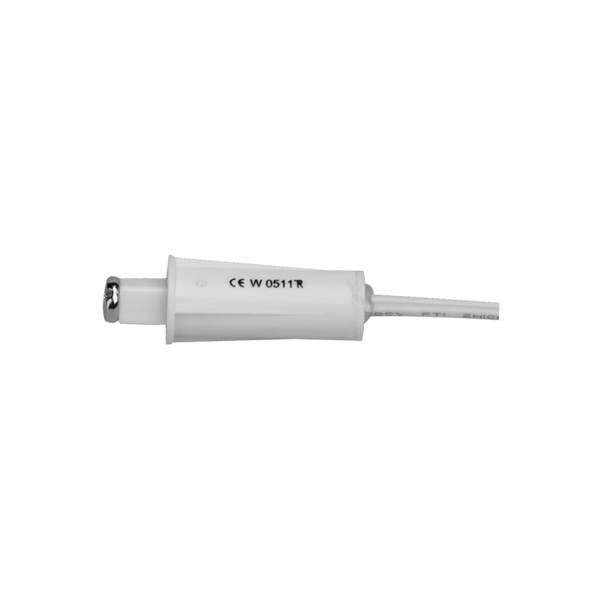

TANE-3/8ASH-WH Recessed Adjustable Screw-Type Magnetic Contact (White)

The TANE-3/8ASH-WH is a recessed magnetic contact designed with an adjustable screw mechanism, allowing for flexible installation depth and reliable operation in varied door and window frame setups. It features a normally open reed switch that closes when aligned with a magnet, offering dependable security performance. Its compact cylindrical white housing ensures discreet embedding while allowing for easy adjustment via a screw plunger for precise magnetic alignment.

This contact operates within a temperature range of -40°C to +60°C and supports switching up to 24V AC/DC at 0.1A. With a contact size of 9 mm diameter by 30.5 mm length, it includes 305 mm (12 inch) 22 AWG wire leads for straightforward wiring. The TANE-3/8ASH-WH is ideal for both residential and commercial security systems where installation flexibility and flush mounting are required:contentReference[oaicite:0]{index=0}.

Key Features

  • Adjustable screw-type recessed contact for flexible installation depth
  • Normally open reed switch rated for 24V AC/DC at 0.1A
  • Compact contact size: 9 mm (DIA) x 30.5 mm (L)
  • 305 mm (12 inch) 22 AWG leads for quick integration
  • Operating temperature range: -40°C to +60°C
  • COLOR BROWN
  • PRODUCT TYPE REED SWITCH
