TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 15MM 1x N/C OUTPUT (DRY) PLASTIC RECESSED MOUNT 9.5MM HOLE CUTO View larger

TANE

TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 15MM 1x N/C OUTPUT (DRY) PLASTIC RECESSED MOUNT 9.5MM HOLE CUTO

TANTAP-10-WH

TANTAP-10-WH

New product

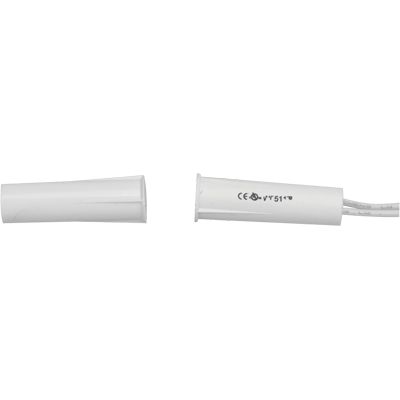

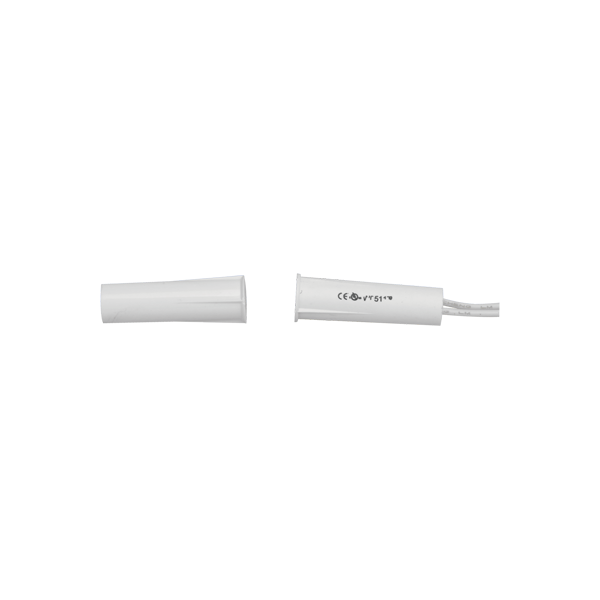

TAP-10-WH Recessed Magnetic Contact (White)

The TAP-10-WH is a recessed magnetic contact designed for clean and concealed perimeter protection in security systems. It features a normally open reed switch configuration and a compact cylindrical form factor that allows it to be embedded directly into wooden or non-metallic frames. This model is ideal for residential and commercial alarm applications where aesthetics and reliable performance are both critical.

With a standard magnet gap of 15 mm and a contact rating of 10W, the TAP-10-WH supports up to 110V AC or 100V DC at 0.5A. It includes 305 mm (12 inch) 22 AWG leads and operates effectively within a wide temperature range of -40°C to +60°C. Both the contact and the matching magnet measure 9.5 mm in diameter and 32 mm in length, offering a symmetrical and tamper-resistant installation profile:contentReference[oaicite:0]{index=0}.

Key Features

  • Normally Open recessed contact for discreet intrusion detection
  • Rated for 110V AC / 100V DC at 0.5A with 10W contact rating
  • Standard operating gap of 15 mm ensures reliable performance
  • Dimensions: 9.5 mm (DIA) x 32 mm (L), includes matching magnet
  • 305 mm (12 inch) 22 AWG leads included for easy integration
  • Operates across a wide temperature range: -40°C to +60°C
  • COLOR WHITE
  • PRODUCT TYPE REED SWITCH
