> >>TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 11MM 1x N/C OUTPUT (DRY) PLASTIC SURFACE MOUNT
TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 11MM 1x N/C OUTPUT (DRY) PLASTIC SURFACE MOUNT View larger

TANE

TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 11MM 1x N/C OUTPUT (DRY) PLASTIC SURFACE MOUNT

TANTANE-45-WH

TANTANE-45-WH

New product

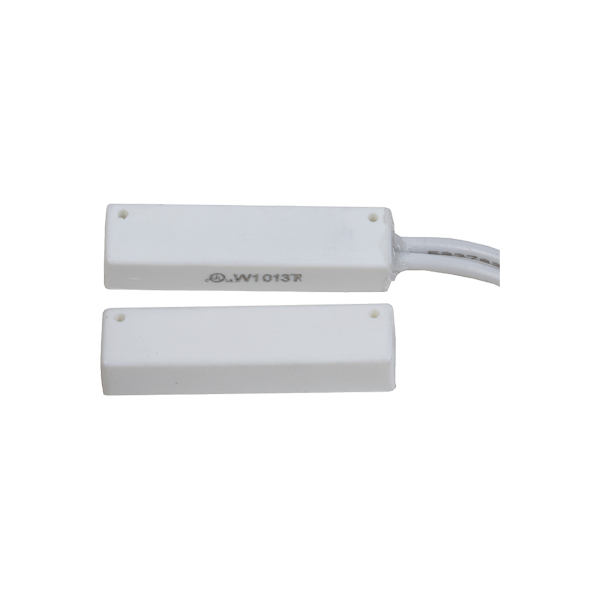

TANE-45-WH Surface Mount Magnetic Contact with Adhesive (White)

The TANE-45-WH is a compact surface mount magnetic contact designed for reliable intrusion detection in residential and commercial security systems. Featuring a Normally Open reed switch, this model activates when its magnetic field is interrupted across a standard 11 mm gap. The white ABS housing and strong adhesive backing allow for quick, tool-free installation on doors, windows, or frames without the need for mounting hardware.

Built for durable performance, the TANE-45-WH supports up to 24V AC/DC at 0.1A and operates in a temperature range of -40°C to +60°C. Both the contact and magnet measure 26.9 mm x 6.85 mm x 4.75 mm, enabling a clean, symmetrical appearance when installed. It comes pre-wired with 305 mm (12 inch) 22 AWG leads, offering a practical and tamper-resistant solution for perimeter protection:contentReference[oaicite:0]{index=0}.

Key Features

  • Normally Open reed switch with 11 mm standard magnet gap
  • Compact surface mount housing in white with strong adhesive backing
  • Rated for 24V AC/DC at 0.1A switching current
  • Dimensions: 26.9 mm (L) x 6.85 mm (W) x 4.75 mm (H)
  • Includes 305 mm (12 inch) 22 AWG leads for easy wiring
  • Wide operating temperature range: -40°C to +60°C
  • COLOR SILVER
  • PRODUCT TYPE REED SWITCH
