> >>TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 15MM 1x N/C OUTPUT (DRY) PLASTIC RECESSED MOUNT 9MM HOLE CUTOUT
New TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 15MM 1x N/C OUTPUT (DRY) PLASTIC RECESSED MOUNT 9MM HOLE CUTOUT View larger

TANE

TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 15MM 1x N/C OUTPUT (DRY) PLASTIC RECESSED MOUNT 9MM HOLE CUTOUT

TANSTB-10-WH

TANSTB-10-WH

New product

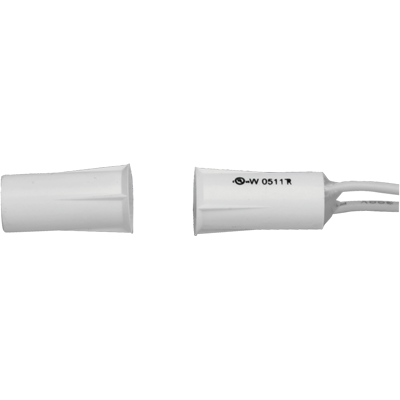

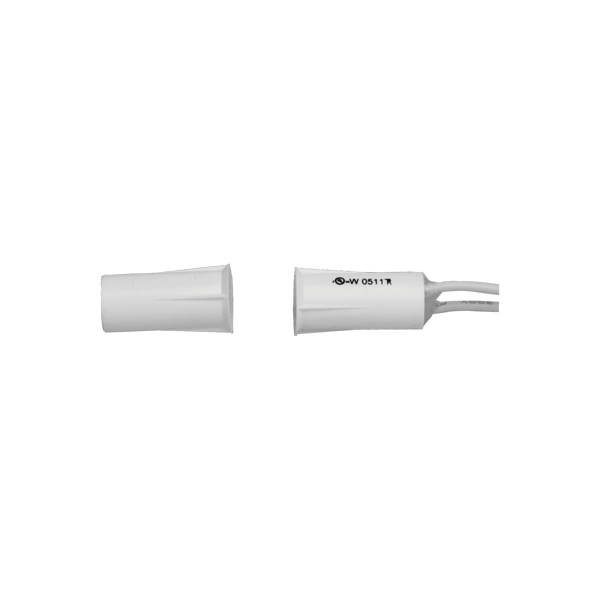

STB-10-WH Recessed Magnetic Contact – Stubby Type (White)

The STB-10-WH is a compact recessed magnetic contact designed for low-profile intrusion detection in doors and windows. This stubby-style model features a normally open reed switch configuration and fits snugly into tight mounting spaces, making it ideal for residential and commercial security systems that require discreet yet reliable perimeter protection. Its white housing blends seamlessly with light-coloured surfaces for an unobtrusive finish.

With a standard operating gap of 15 mm, the STB-10-WH delivers dependable performance and is rated for up to 110V AC or 100V DC at 0.5A. The unit includes 305 mm (12 inch) 22 AWG leads for easy integration and operates effectively in temperatures from -40°C to +60°C. Both the contact and magnet measure 9 mm in diameter by 19 mm in length, providing a flush installation that minimizes tampering and maximizes aesthetic appeal:contentReference[oaicite:0]{index=0}.

Key Features

  • Normally open recessed contact for clean, concealed installations
  • Stubby-style housing ideal for narrow mounting cavities
  • Rated for 110V AC / 100V DC at 0.5A
  • Standard 15 mm magnet gap ensures reliable activation
  • Compact dimensions: 9 mm (DIA) x 19 mm (L)
  • 305 mm (12 inch) 22 AWG leads, operating range: -40°C to +60°C
  • COLOR WHITE
  • PRODUCT TYPE REED SWITCH
