> >>TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 15MM 1x SPDT OUTPUT PLASTIC RECESSED MOUNT 9.5MM HOLE CUTOUT
TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 15MM 1x SPDT OUTPUT PLASTIC RECESSED MOUNT 9.5MM HOLE CUTOUT View larger

TANE

TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 15MM 1x SPDT OUTPUT PLASTIC RECESSED MOUNT 9.5MM HOLE CUTOUT

TANTAP-12C-WH

TANTAP-12C-WH

New product

TAP-12C-WH Recessed SPDT Magnetic Contact (White)

The TAP-12C-WH is a recessed magnetic contact designed for high-security installations requiring flexible wiring options. This model features a Single Pole Double Throw (SPDT) reed switch, offering Normally Open (NO), Normally Closed (NC), and Common (COM) terminals in a compact cylindrical white housing. Its concealed installation makes it ideal for residential and commercial intrusion detection systems that demand both discretion and reliable circuit monitoring.

With a standard operating gap of 15 mm, the TAP-12C-WH is rated for 30V AC/DC at 0.2A, making it well-suited for low-voltage alarm systems. It includes 305 mm (12 inch) 22 AWG leads and operates over a wide temperature range of -40°C to +60°C. The contact and magnet both measure 9.5 mm in diameter and 32 mm in length, ensuring a flush, tamper-resistant fit in door or window frames:contentReference[oaicite:0]{index=0}.

Key Features

  • SPDT reed switch with NO, NC, and COM outputs for flexible configurations
  • Compact recessed design for concealed perimeter protection
  • Rated for 30V AC/DC at 0.2A switching current
  • Standard magnet gap of 15 mm ensures dependable performance

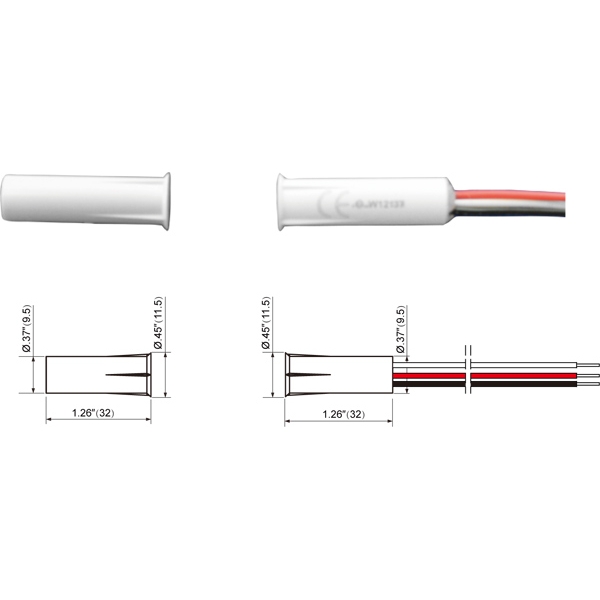

  • Dimensions: 9.5 mm (DIA) x 32 mm (L), includes matching magnet
  • 305 mm (12 inch) 22 AWG leads, operating temperature: -40°C to +60°C
  • COLOR BLACK
  • PRODUCT TYPE REED SWITCH
