> >>TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 28MM 1x SPDT OUTPUT PLASTIC RECESSED MOUNT 25MM HOLE CUTOUT
New TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 28MM 1x SPDT OUTPUT PLASTIC RECESSED MOUNT 25MM HOLE CUTOUT View larger

TANE

TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 28MM 1x SPDT OUTPUT PLASTIC RECESSED MOUNT 25MM HOLE CUTOUT

TANSD-82C-WH

TANSD-82C-WH

New product

SD-82C-WH Recessed DPDT Magnetic Contact for Steel Doors (White)

The SD-82C-WH is a high-security recessed magnetic contact engineered for installations in steel doors where dual-circuit protection is required. Featuring a Double Pole Double Throw (DPDT) reed switch, this model supports simultaneous monitoring of two independent alarm loops, making it ideal for complex commercial and industrial intrusion detection systems. Its white cylindrical housing blends seamlessly into light-coloured steel frames for discreet installation.

Built to operate reliably in harsh environments, the SD-82C-WH supports up to 30V AC/DC at 0.2A per circuit. It has a standard operating gap of 28 mm and includes 305 mm (12 inch) 22 AWG leads for simple wiring. With compact dimensions of 25 mm in diameter and 21.3 mm in length, this contact offers tamper-resistant performance with a secure flush fit into door frames, delivering dependable activation and system versatility.

Key Features

  • DPDT reed switch allows dual independent alarm loop monitoring
  • Recessed design for steel doors with white finish for low-profile appearance
  • Standard 28 mm magnet gap ensures consistent contact operation
  • Rated for 30V AC/DC at 0.2A per circuit

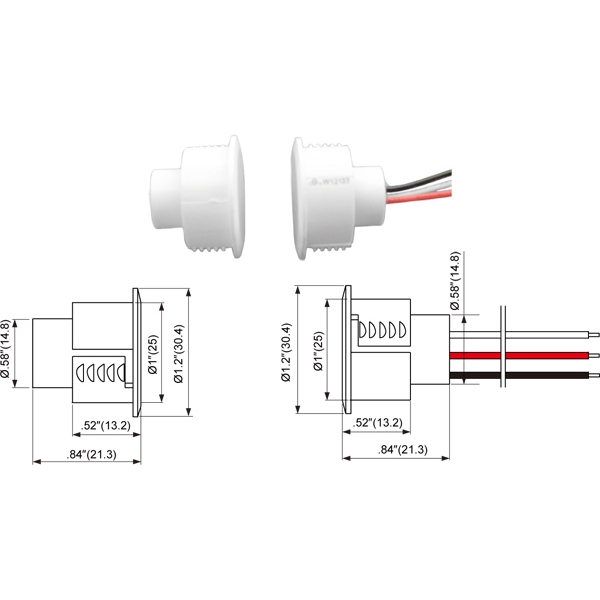

  • Dimensions: 25 mm (DIA) x 21.3 mm (L), includes 305 mm (12 inch) 22 AWG leads
  • Wide operating temperature range: -40°C to +60°C
  • COLOR WHITE
  • PRODUCT TYPE REED SWITCH
