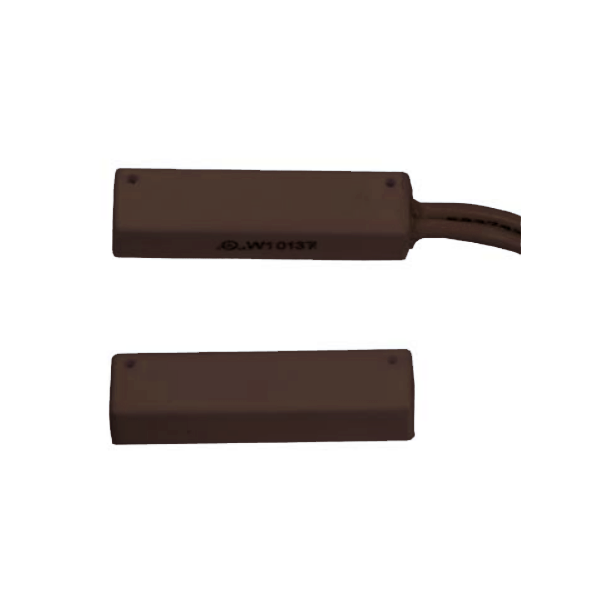

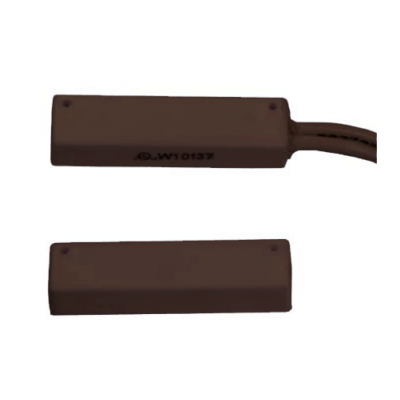

TANE-45-BROWN Surface Mount Magnetic Contact with Adhesive (Brown)

The TANE-45-BROWN is a compact surface mount magnetic contact engineered for perimeter intrusion detection in residential and commercial alarm systems. Designed with a normally open reed switch, this model activates when its magnetic field is disrupted across a standard 11 mm gap. Housed in a durable brown ABS enclosure, it features a high-strength adhesive backing for quick, tool-free installation on doors, windows, or frames without visible fasteners.

With a slim profile measuring 26.9 mm x 6.85 mm x 4.75 mm, the TANE-45-BROWN provides discreet protection while supporting switching voltages up to 24V AC/DC at 0.1A. It includes 305 mm (12 inch) 22 AWG leads and operates effectively across a temperature range of -40°C to +60°C. Both the contact and magnet are identically sized, offering a clean and symmetrical appearance once installed:contentReference[oaicite:0]{index=0}.

Key Features

  • Normally open reed switch with 11 mm standard magnet gap
  • Compact surface mount housing with strong adhesive backing
  • Contact and magnet dimensions: 26.9 mm x 6.85 mm x 4.75 mm
  • Rated for 24V AC/DC at 0.1A
  • Includes 305 mm (12 inch) 22 AWG leads
  • Operational temperature range: -40°C to +60°C
  • COLOR WHITE
  • PRODUCT TYPE REED SWITCH
