> >>TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 18MM 1x N/C OUTPUT (DRY) PLASTIC SURFACE MOUNT
New TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 18MM 1x N/C OUTPUT (DRY) PLASTIC SURFACE MOUNT View larger

TANE

TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 18MM 1x N/C OUTPUT (DRY) PLASTIC SURFACE MOUNT

TANSS-40-WH

TANSS-40-WH

New product

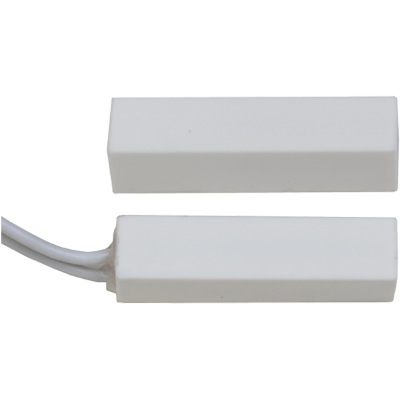

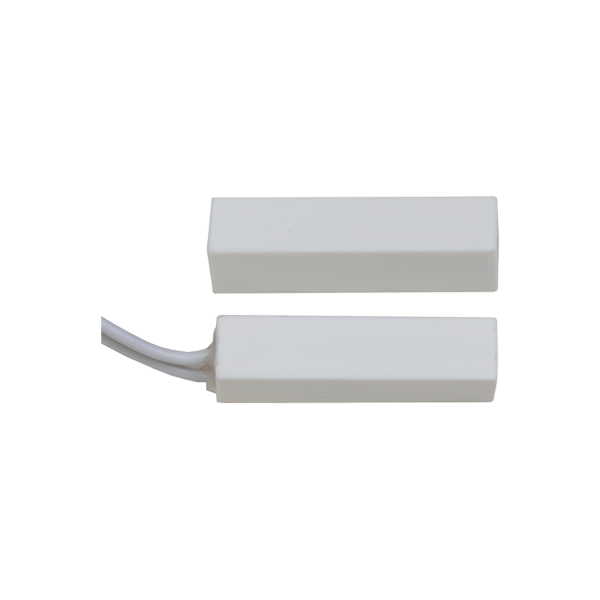

SS-40-WH Surface Mount Magnetic Contact with Adhesive (White)

The SS-40-WH is a compact, surface mount magnetic contact designed for intrusion detection on doors and windows in residential and commercial settings. It features a Normally Closed reed switch and a strong adhesive backing for quick, tool-free installation. With a low-profile white ABS housing, it blends discreetly into light-coloured frames while delivering consistent performance across standard applications.

This model supports a standard magnet gap of 18 mm and is rated for up to 100V AC/DC at 0.5A. Both the contact and the magnet measure 33 mm x 8 mm x 8 mm, providing a symmetrical and tamper-resistant installation. It comes pre-wired with 305 mm (12 inch) 22 AWG leads and operates across a broad temperature range from -40°C to +60°C, making it ideal for varied environmental conditions:contentReference[oaicite:0]{index=0}.

Key Features

  • Normally Closed reed switch with 18 mm standard magnet gap
  • Compact white surface mount housing with high-bond adhesive backing
  • Rated for 100V AC/DC at 0.5A switching current
  • Dimensions: 33 mm (L) x 8 mm (W) x 8 mm (H)
  • Includes 305 mm (12 inch) 22 AWG leads
  • Wide operating temperature range: -40°C to +60°C
  • COLOR BROWN
  • PRODUCT TYPE REED SWITCH
