> >>TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 12.5MM 1x N/O OUTPUT (DRY) PLASTIC RECESSED MOUNT 9MM HOLE CUTO
New TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 12.5MM 1x N/O OUTPUT (DRY) PLASTIC RECESSED MOUNT 9MM HOLE CUTO View larger

TANE

TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 12.5MM 1x N/O OUTPUT (DRY) PLASTIC RECESSED MOUNT 9MM HOLE CUTO

TANSTB-11B-WH

TANSTB-11B-WH

New product

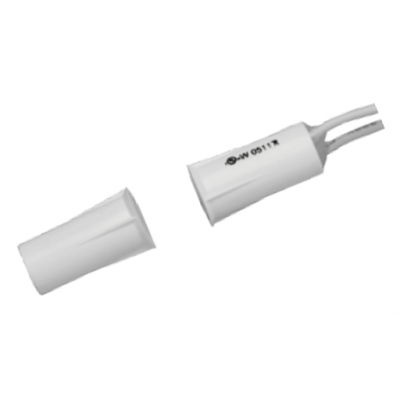

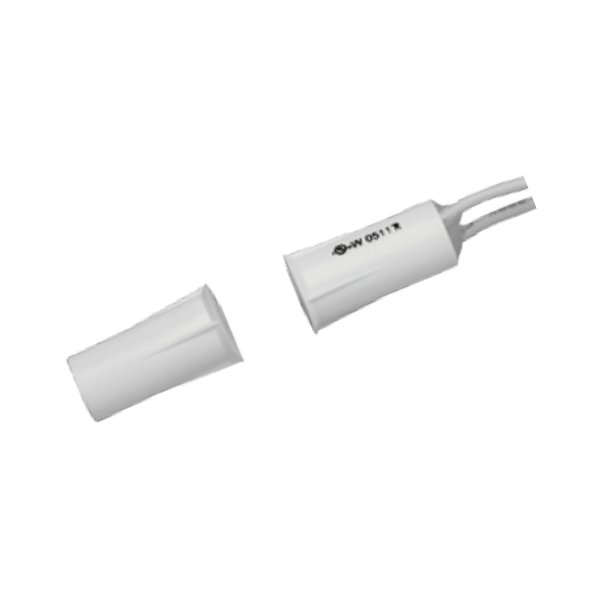

STB-11B-WH Recessed Magnetic Contact – Stubby Type with SPDT Switch (White)

The STB-11B-WH is a stubby-style recessed magnetic contact designed for discreet installation in doors and windows, offering enhanced flexibility with its SPDT (Single Pole Double Throw) reed switch. This configuration allows for Normally Open, Normally Closed, and Common outputs, making it ideal for versatile wiring requirements in residential and commercial alarm systems. The contact's compact cylindrical white housing blends seamlessly with light-coloured frames while maintaining high performance and tamper resistance.

Measuring just 9 mm in diameter by 19 mm in length, the STB-11B-WH fits snugly into tight cavities and offers a standard operating gap of 15 mm. It is rated for up to 30V AC/DC at 0.2A, suitable for low-voltage security setups. The unit includes 305 mm (12 inch) 22 AWG leads and performs reliably across a temperature range of -40°C to +60°C, making it a solid choice for environments demanding compact, recessed detection with switch flexibility:contentReference[oaicite:0]{index=0}.

Key Features

  • SPDT reed switch with NO, NC, and COM terminals for multi-function wiring
  • Stubby recessed design for compact, concealed installations
  • Dimensions: 9 mm (DIA) x 19 mm (L), standard 15 mm magnet gap
  • Rated for 30V AC/DC at 0.2A, ideal for low-voltage systems
  • 305 mm (12 inch) 22 AWG leads, operational range: -40°C to +60°C
  • COLOR WHITE
  • PRODUCT TYPE REED SWITCH
