> >>SENTROL SEN1035-N HARDWIRED REED SWITCH WHITE DETECTION GAP 15.8MM 1 x N/C OUTPUT (DRY) PLASTIC SURFACE MOUNT
New SENTROL SEN1035-N HARDWIRED REED SWITCH WHITE DETECTION GAP 15.8MM 1 x N/C OUTPUT (DRY) PLASTIC SURFACE MOUNT View larger

SENTROL

SENTROL SEN1035-N HARDWIRED REED SWITCH WHITE DETECTION GAP 15.8MM 1 x N/C OUTPUT (DRY) PLASTIC SURFACE MOUNT

SEN1035-N

SEN1035-N

New product

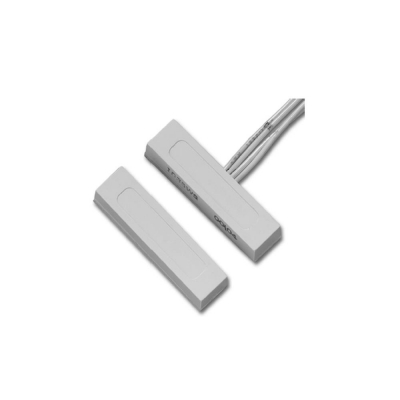

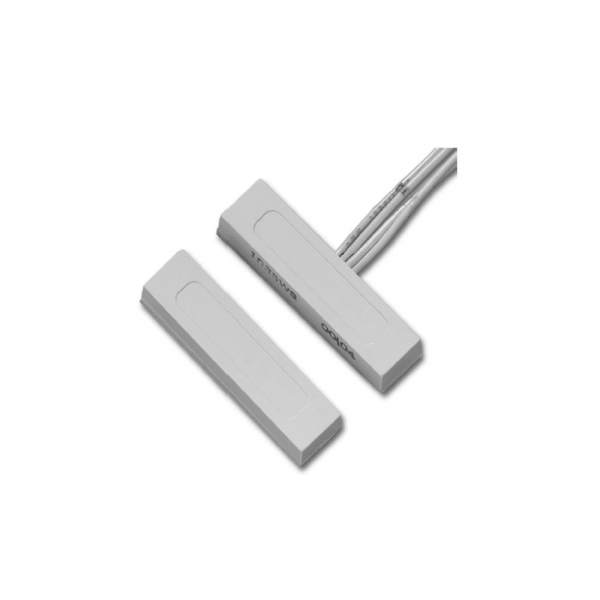

Sentrol SEN1035-N 1035 Series Wired Magnetic Reed Contact Surface Mount - 16mm Gap Closed Loop White

The SEN1035-N is a high-quality hardwired magnetic reed switch contact designed for reliable door and window intrusion detection in security alarm systems. Measuring 6.4mm H x 38mm W x 9.5mm D with a slim 1/4in 6.4mm profile, it features flame-retardant ABS plastic housing and a low-profile self-adhesive press-fit design to ensure fast installation, strong hold, and dependable long-term performance.

Ideal for residential and commercial perimeter protection where drilling is impractical, it complies with UL634 and ULC/ORD-C634 and offers IP67 sealing plus broad NEMA 1 2 3 4 4X 5 6 12 ratings for added durability, helping reduce nuisance issues while delivering consistent switch operation across harsh environments.

Key Features

  • Surface-mount wired miniature magnetic contact with approximately 16mm 5-8in detect gap for doors and windows
  • Flame-retardant ABS plastic housing in white for a clean professional finish
  • 3M self-adhesive press-fit installation with repositioning window and no screws or glue required
  • 100VAC-VDC max 0.5A max 7.5W max with fast 1msec response and 1ft 30cm #22 wire leads
  • Closed-loop wiring with normally open reed configuration rated to 10,000,000 cycles for dependable security use
  • COLOR SILVER
  • PRODUCT TYPE REED SWITCH
