> >>SENTROL SEN1076H-N HARDWIRED HIGH SECURITY REED SWITCH (BIASED) WHITE DETECTION GAP 12.7MM 1 x SPDT OUTPUT PLA
New SENTROL SEN1076H-N HARDWIRED HIGH SECURITY REED SWITCH (BIASED) WHITE DETECTION GAP 12.7MM 1 x SPDT OUTPUT PLA View larger

SENTROL

SENTROL SEN1076H-N HARDWIRED HIGH SECURITY REED SWITCH (BIASED) WHITE DETECTION GAP 12.7MM 1 x SPDT OUTPUT PLA

SEN1076H-N

SEN1076H-N

New product

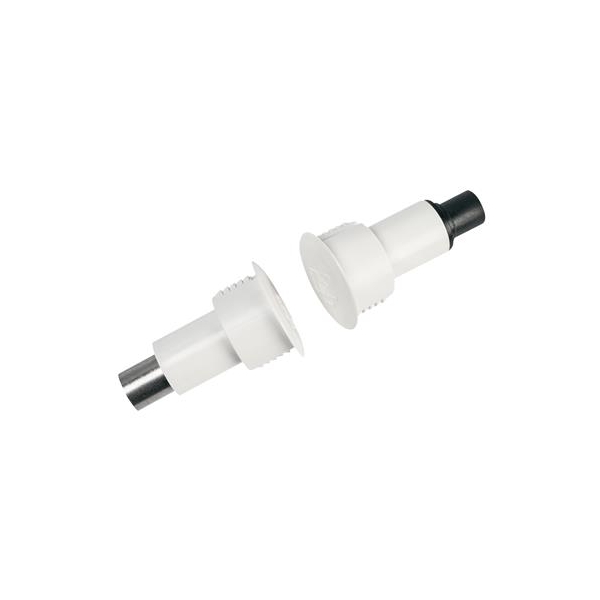

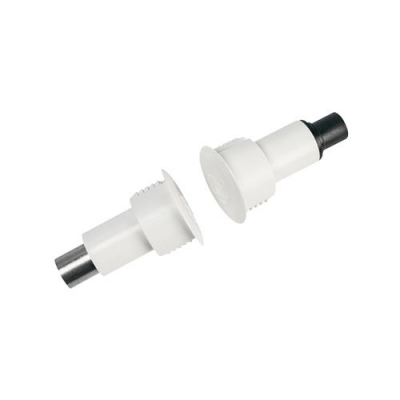

Sentrol SEN1076H-N High Security Biased Recessed Steel Door Contact 1in Dia - 12.7mm Gap

The 1076H-N is a high-quality recessed magnetic door contact reed switch designed for high-security intrusion detection on commercial steel doors and frames. Measuring 29 x 29 mm with a 1 inch diameter body and a wide 12.7 mm sensing gap, it features a flame retardant ABS plastic housing and a biased SPDT reed for enhanced resistance to defeat and tampering.

Ideal for alarm systems, access control monitoring, and building security upgrades, it supports up to 30 VAC VDC with 0.25 A switching and includes 1 ft 22 AWG wire leads for fast hardwired installation. With a rugged unibody style and magnet isolation for steel mounting, it helps maximize reliable gap performance and reduce nuisance alarms in demanding commercial environments.

Key Features

  • High security biased SPDT reed contact for improved tamper resistance
  • Up to 12.7 mm gap on steel door applications for dependable door position sensing
  • Flame retardant ABS plastic recessed housing for durability and clean professional installs
  • 30 VAC VDC max 0.25 A max 3.0 W max electrical rating for security loops
  • 1 inch diameter recessed mount with 1 ft 22 AWG wire leads in white for discreet wiring
  • COLOR WHITE
  • PRODUCT TYPE REED SWITCH
